BATCH DIGESTERS
Digester change-out completed in 5 days.

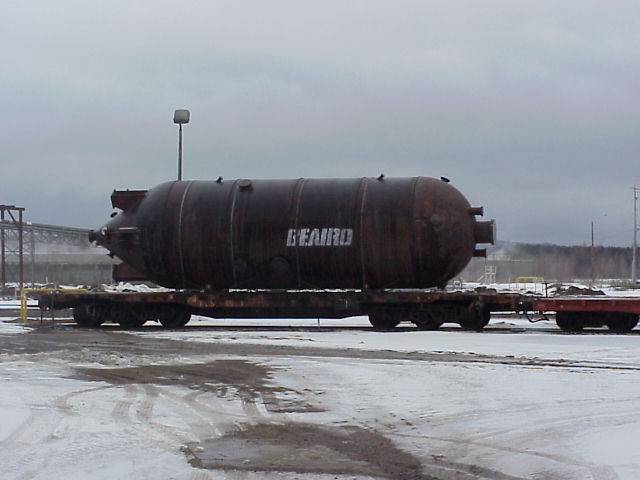

New 80 Ton Batch Digester

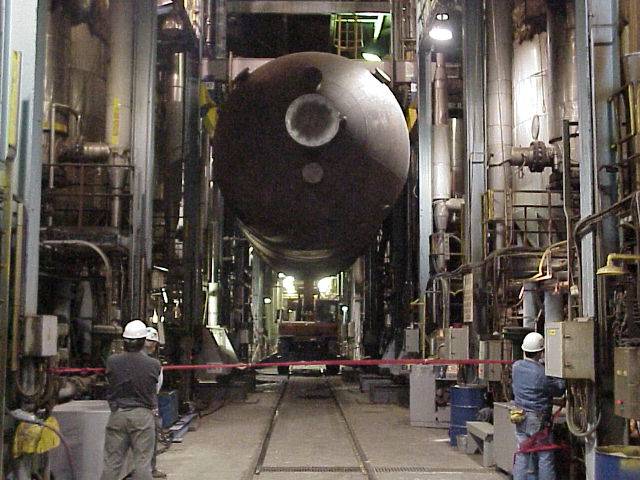

Digester Being Readied for Lift System

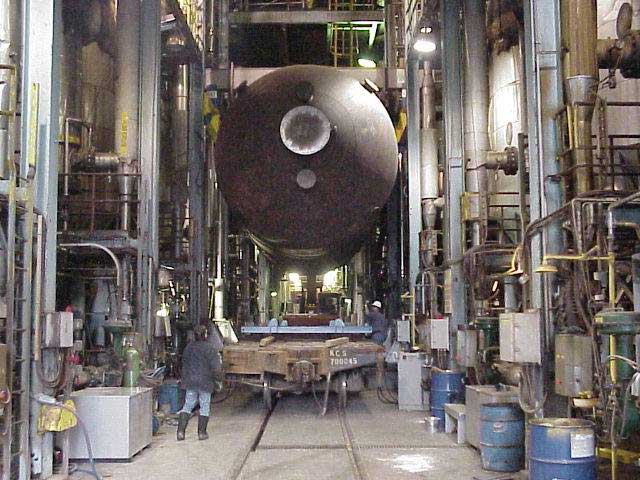

Lift System Installed and Digester in its Initial Position for Hoisting

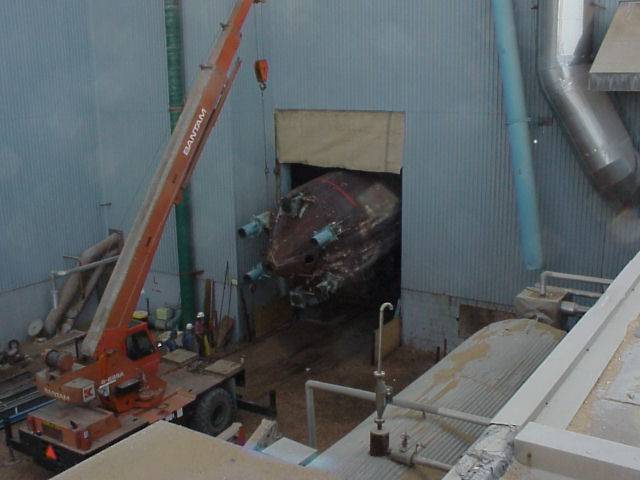

Tail End of Digester
Crane is used to support tail end of digester.

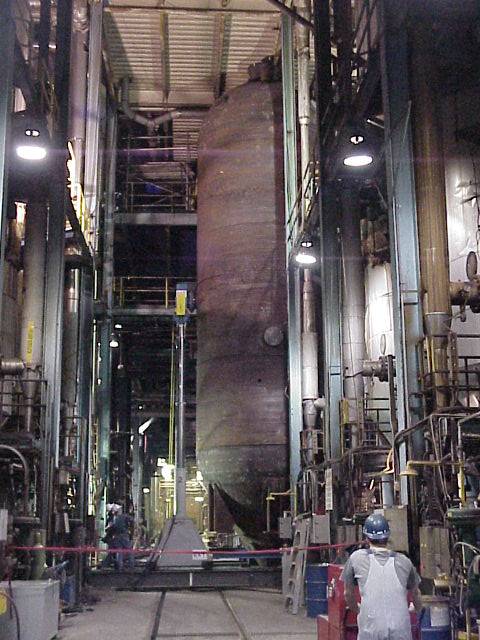

Digester in Upright Position
Digester being rolled to its final location.

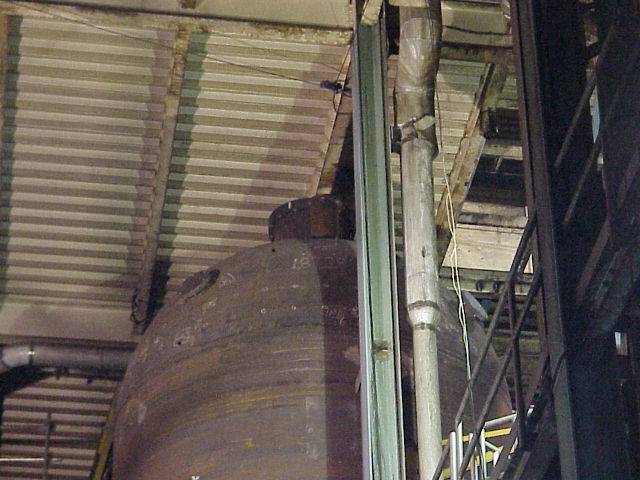

Lift System Permits Installation in Extremely Tight Quarters
Picture shows charging floor above.  Clearance less than one foot.
